| - Mechatronics Simulator : V-MECA |
|
| |
|
 |
Introduction |
|
| |
V-MECA is the abbreviation of Virtual-Mechatronics
|
Mechatronics is a virtual word composed of Mechanism and Electronics, it is a learning for this complexes technology
|

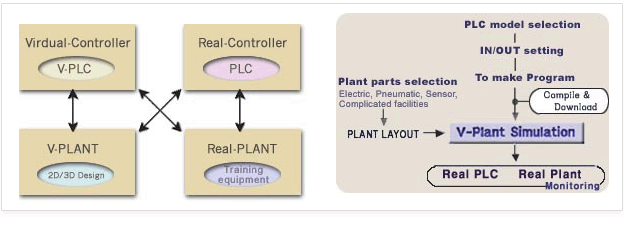

| V-MECA is specific mechatronics simulation software which design and assemble structure or mechanism, and control it with electric and PLC |
|
| |
|
layout |
|
| |
 |
|

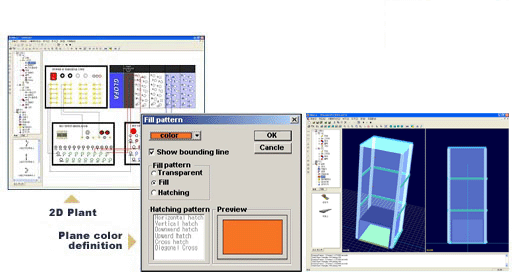

plant |
|
| * Comfortable design tool considering user's convenience
|
| - |
Virtual CNC machining view |
| - |
3D Multi-window for user's intuition |
| - |
Free view setting with mouse control(Rotation, Zooming in/out, Movement, View divide) |
| - |
Tree view type various Library (Conveyor, Robot, Sensor, Cylinder, Motor, Switch) |
|
|
| |
|
| |
* Free modeling structure
|
| - |
Primitive design such as cylinder, sphere, cubic,……… |
| - |
Rendering point, line, plane,………… |
|
|
 |
| |
| * Various structure parameter definition |
| - |
Definition of Fixation, linear, rotation movement method |
| - |
Setting up ON/OFF, darkness, position,color of a source of light |
| - |
Setting up point, parallel, concentrated light source, material |
| - |
Controllable speed of Real Time Simulation |
| - |
Checks collision in manipulators
|
|
 |
|
| |
| * Electric |
| - |
Actual electric wiring diagram design that internal structure viewable |
| - |
Setting up a capacity of electric source, motor, LED, Relay |
| - |
Single phase and Triple phase current |
| - |
Input/Output, Transform, Safe device |
| - |
Setting up color and thickness of wiring |
| - |
Error message when short circuit |
| - |
Supporting IEC standard |
| - |
Each component function chart |
|
 |
|
|
Plc |
|
| * Quick PLC program |
| - |
Any PLC model supporting |
| - |
LD, FBD, SFC of IEC,.. programming language supported
|
| - |
Plural number of PLC program could be executed simultaneously |
| - |
To make Tag List and printing it |
|
 |
|
| |
| * Exact PLC design function
|
| - |
Setting up the number of IN/OUT channel
|
| - |
Direct connection using channel of PLC and Equipment |
| - |
Plural PLC supported |
| - |
To make Tag List and printing it |
|
 |
|
| |
| * Simulation & Interface
|
| - |
Checking and monitoring on program during simulation |
| - |
Confirming variable value through time chart
|
| - |
Communication through RS232C between Real PLC and software |
| - |
Communication through interface card between actuator and software |
| - |
Any PLC model supporting |
|
 |
|
| |
| * e-Education |
| - |
Study program step by step and practice example |
| |
Study Target >> Study Content>>Summary>>Test
|
| - |
Theory of electrics and PLC |
| - |
Various plant control example |
|
|
| |
|
|
System Requirements |
|
|
Minimum |
Recommendation |
| CPU |
Pentium Ⅲ |
Pentium Ⅳ |
| MEMORY |
64MB |
128MB |
| HDD |
300MB |
500MB |
| GRAPHIC |
1024X768 |
1024X768 |
| VRAM |
16MB |
32MB |
| OS |
Windows 98/ NT/ 2000/XP |
|
| |
|
Effect |
|
| - |
Component study necessary for automation is possible in stages
|
| - |
Field adaptation ability can be improved by exercising PLC of each model
|
| - |
Pre-simulation is possible when structuring and modifying automation line |
| - |
Amount invested can be reduced because exercise kits are able to be operated without PLC |
| - |
New education system connected with other various concepts |
|
|
|
 |
Case study |
|
| |
|
|
Testimonial |
|
| What Users Say About V-MECA! |
|
| |
-
|
V-MECA is enable to educate Mechatronics study to advanced level from basic level,so I makes full use of V-MECA for classes!
|
|
|
| - |
I can record avi file for 3D simulation of V-MECA. It is good for education data. |
|
|
| - |
V-MECA has education learning function and practice example so it is very strength of V-MECA. |
|
|
| - |
It is enable to communicate with PLC through RS232C.So student can understand software and hardware of Mechatronics! |
|
|
| - |
2D and 3D equipment is simulated at the same time. So student can understand more deeply. |
|
|
| - |
Simple 3D design function and external 3D modeling files import function is more superior than other programs. |
|
|
| - |
Cubictek support learning material of class,and It is unlimited. I always thank cubitek people!! |
| |
|
|
|
|
| |
|
Package |
|
| |
 |
*Box : Manual, CD, Lock(dongle) etc.
-CD : Software install file
-Hard Lock : Parallel port type, USB type (multi or single)
-Soft Lock : Hard-Disk type, Lan card type. |
|
|
| |
 |
|
 |
|
|
|
| |
|
|
|
|
| |
|
|
