| - Forging Process :AFDEX |
|
| |
|
 |
Introduction |
|
The tendency toward various-item & small-lot production is arising in the manufacturing field.
Meanwhile, the number of highly skilled engineer is decreasing. In the global market, the major
factor for competitive power is the reduction of lead-time and cost. Reflecting these conditions, an intelligent forging simulator that improves the process design has been developed.
Therefore, AFDEX(Adviser for Forging Design EXpert ) is designed for Verification of Forging
process and Development of Forging Die. |
| |
|
Features |
|
| Accuracy |
| - |
From over 500examples, which include not only simple upsetting processes but also complex multi-stage forging processes found from the hot, warm, cold forging industries, accuracy and capability have been verified. |
|
 |
|
|
Suitable for Everyone
- AFDEX dose not enforce the related theory and FEM(Finite Element Method) on users?forging process design engineers. AFDEX has been developed under concept that even novices can use it with ease. |
 |
|
| |
| Easy to USE |
| - |
he wizard method of AFDEX and various examples help you analyze the forging process with ease. AFDEX has been never discouraged you at all. |
|
 |
|
|
| Designed for PC Environment |
| - |
AFDEX dose not require an expensive UNIX machine. This feature helps you apply AFDEX more conveniently. AFDEX is more stable than other systems that are downsized from UNIX to PC environment.
|
|
| |
| Various simulation Result |
| - |

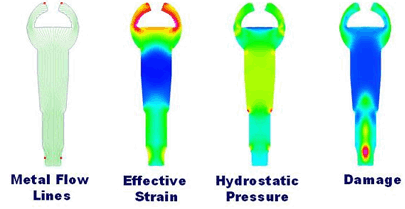

AFDEX shows following various results : Deformed shape, Nodal velocity, Strain, Strain-rate, Stress, Metal flow line, Metal point flow, Boundary nodal force, Interfacial stress, Temperature-distribution, Damage, Wear, Volume change, Load, Power, etc. |
| |
 |
| |
|
|
| Automatic Analysis of Multi-Process |
| - |
The multi-stage forging processes can be simulated automatically without user interference. |
| |
 |
| |
|
|
|
Analysis Examples |
|
| Process Design Evaluation |
| - |
You can see whether material fills the die entirely or not.The multi-stage forging processes can be simulated automatically without user interference. |
| |
 |
| |
|
|
|
|
System Requirements |
|
|
Minimum |
Recommendation |
| CPU |
Pentium Ⅲ |
Pentium Ⅳ |
| MEMORY |
64MB |
256MB |
| HDD |
300MB |
500MB |
| GRAPHIC |
1024X768 |
1024X768 |
| VRAM |
16MB |
64MB |
| OS |
Windows 98 / NT / 2000 / XP |
|
|
 |
Case study |
|
| |
|
|
Testimonial |
|
| |
|
| |
|
Package |
|
| |
 |
*Box : Manual, CD, Lock(dongle) etc.
*CD : Software install file
*Hard Lock : Parallel port type, USB type (multi or sinle)
*Soft Lock : Hard-Disk type, Lan card type. |
|
|
| |
 |
|
 |
|
|
|
| |
|
|
|
|
| |
|
|
