| Z-CAST |
 |
Introduction |
|
Z-CAST is..
The first Casting Process CAE system for Windows in Korea, which was co-developed by KITECH(developing solver since 15 years ago and it has been certification in the real casting production) and Cubictek(developing the first CAD/CAM in Korea). |
| - |
Casting Process Simulation Software specified for Casting Process Analysis
|
| - |
Tool for optimized casting process design and die design |
| - |
Total process simulation of metal's flow, filling, solidification |
| - |
Rapid and exact result for casting company |
| - |
Comfortable user interface based on all Window technology |
|
|
 |
| |
|
|
|
|
Features |
|
| - |
Project management
|
| - |
CAD DATA INTERFACE(STL,IGES) |
| - |
CATIA,PRO/E,MDT,IDEAS,UG |
| - |
Modeling for the casting design |
| - |
Automatic mesh generation and modifying |
| |
Determining of inlet/thermocouple |
| |
Solidification,flow,cyclic casting module |
| |
Heat treatment/Microstructure module |
| |
Material DB management |
| |
Saving of animation |
| |
Shrinkage display |
| |
GUI for user's convenience |
|
 |
| |
|
|
|
Pre-Process |
|
| Project management |
| - |
Casting design and modeling using Primitive |
| - |
CAD DATA INTERFACE(STL,IGES) |
|
 |
| Auto-Mesh Generation |
| - |
Speedy and easy mesh generation(4million/4sec) |
| - |
Automatic mesh generation and modifying |
| - |
Unlimited number of mesh generation(100million) |
| - |
Be able to define inlet/thermocouple |
|
 |
| DATA Base Management |
| - |
Easy and handy material selection |
| - |
To append and modify
ㆍcast : Aluminum,Copper,Magnesium,Zinc,Cast
ㆍSteel,Cast Iron,Cr/Ni Base etc.
ㆍmold : SKD6,SKD61,Steel,Green_Sand Furan,CR_sand,ZR_Sand,Ceramin etc.
ㆍthe others : Sleeve,Insulation,Core,Chill etc. |
|
 |
| |
|
|
|
Solver |
|
| Fluid Flow Analysis Module |
| - |
Uncompressible Viscous Fluid |
| - |
Transient Analysis considering Inertia |
| - |
Continuity Equation,Kinematics Equation, Energy
Equation,Sola-Vof method |
|
 |
| Solidification Analysys Module |
| - |
3D Transient heat transfer and solidification
analysis |
| - |
Direct Finite Difference Method(DFDM) |
| - |
Temperature Recovery Method(Latent heat) |
| - |
General sand Casting and investment casting |
|
 |

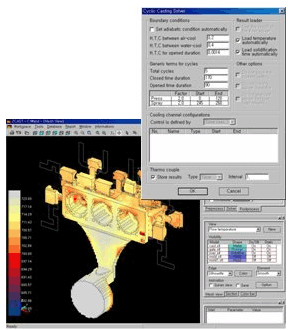

| Cycle Analysis Module |
| - |
3D Transient heat transfer and solidification
analysis |
| - |
Direct Finite Difference Method(DFDM) |
| - |
Temperature Recovery Method(Latent heat) |
| - |
Cooling line design of casting mold(Gravity
Casting,Low pressure casting |
| - |
High pressure die casting and squeeze casting |
| - |
Decision of cycle time |
| - |
Forecast and control of mold temperature |
|
 |
 |
 |
| |
|
|
|
Post-Processor
|
|

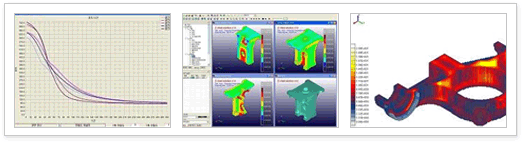

| Fluid Flow Analysis |
| - |

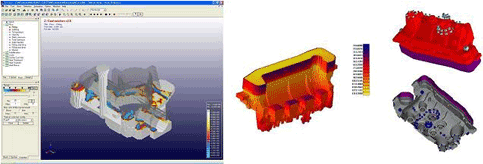

Z-CAST shows molten metal filling procedure analyzed by flow analysis and shows also unfilled region |
|
|
| |
|
Z-Heat Module |
|
| Heat Treatment |
| - |
Optimal Condition for Heat Treatment |
| - |
Time reduce |
| - |
Hardness/Residual Stress Predict |
| |
ㆍQuenching/Annealing/Normalizing
ㆍTempering Temperature
ㆍVarious TTT/CCT Data |
| |
 |
|
|
Z-Stress Module |
|
| - |
Thermal stress Non-linear analysis |
| - |
Residual Stress Predict |
| - |
Hot Tearing & Cracking Position Predict |
| - |
Die Fatigue & Crack Predict |
|
 |
|
| |
|
Applied field |
|
| - |
Sand mold casting : automatic casting line,green sand,CO2,furan,... |
| - |
Permanent mold casting |
| - |
High/Low pressure die casting |
| - |
Squeeze casting |
| - |
Tilt casting |
| - |
Centrifugal casting |
| - |
Investment casting |
| - |
Single crystal investment |
| - |
Lost wax foam,evaporative pattern |
|
| |
|
Effect |
|
| - |
Prediction of casting defect |
| - |
To protect from casting fault |
| - |
To reduce trial making and development cost |
| - |
To accumulate casting process design technology |
| - |
Scientific cooling line design |
| - |
To protect from overheat of die and to prolong die life |
| - |
To improve productivity of die and to short cycle time for production |
|
| |
|
System Requirements |
|
|
Minimum |
Recommendation |
| CPU |
Pentium Ⅲ |
Dual Core |
| MEMORY |
512MB |
2G |
| HDD |
500MB |
10G |
| GRAPHIC |
1280X1024 |
1280X1024 |
| VRAM |
64MB |
128MB |
| OS |
Windows 98/ NT/ 2000 / XP |
|
| |
| |
|
 |
Case study |
|
| |
|
|
Testimonial |
|
| |
|
| |
|
Package |
|
| |
 |
*Box : Manual, CD, Lock(dongle) etc.
*CD : Software install file
*Hard Lock : Parallel port type, USB type (multi or sinle)
*Soft Lock : Hard-Disk type, Lan card type. |
|
|
| |
 |
|
 |
|
|
|
| |
|
|
|
|
| |
|
|
